This Digital Inputs Report presents the periods when the Digital sensors of the selected vehicles were active, indicating the time and place of activation and deactivation.
The amount of time the sensors were active and the driver associated with the vehicle at the moment of the activation are also presented in the report.
Configuration
To generate this report, you only need to select a period and the vehicles that will be listed.

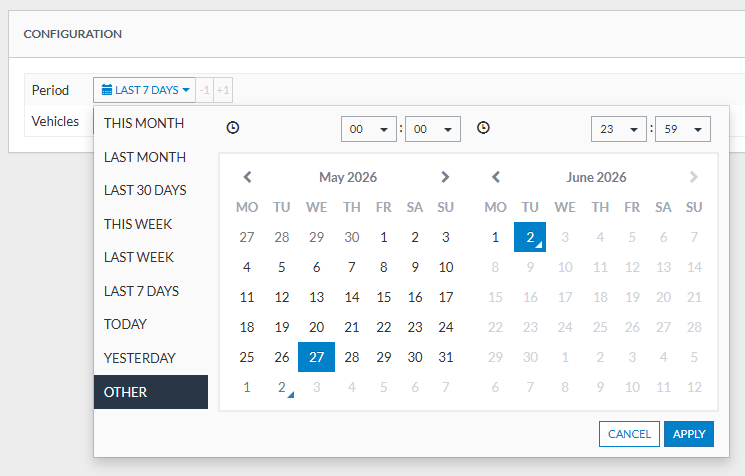

As this report can only be generated for a single day (and the date must not be in the future), you may click on the Period selector, or use the shortcut dates to select the desired date:

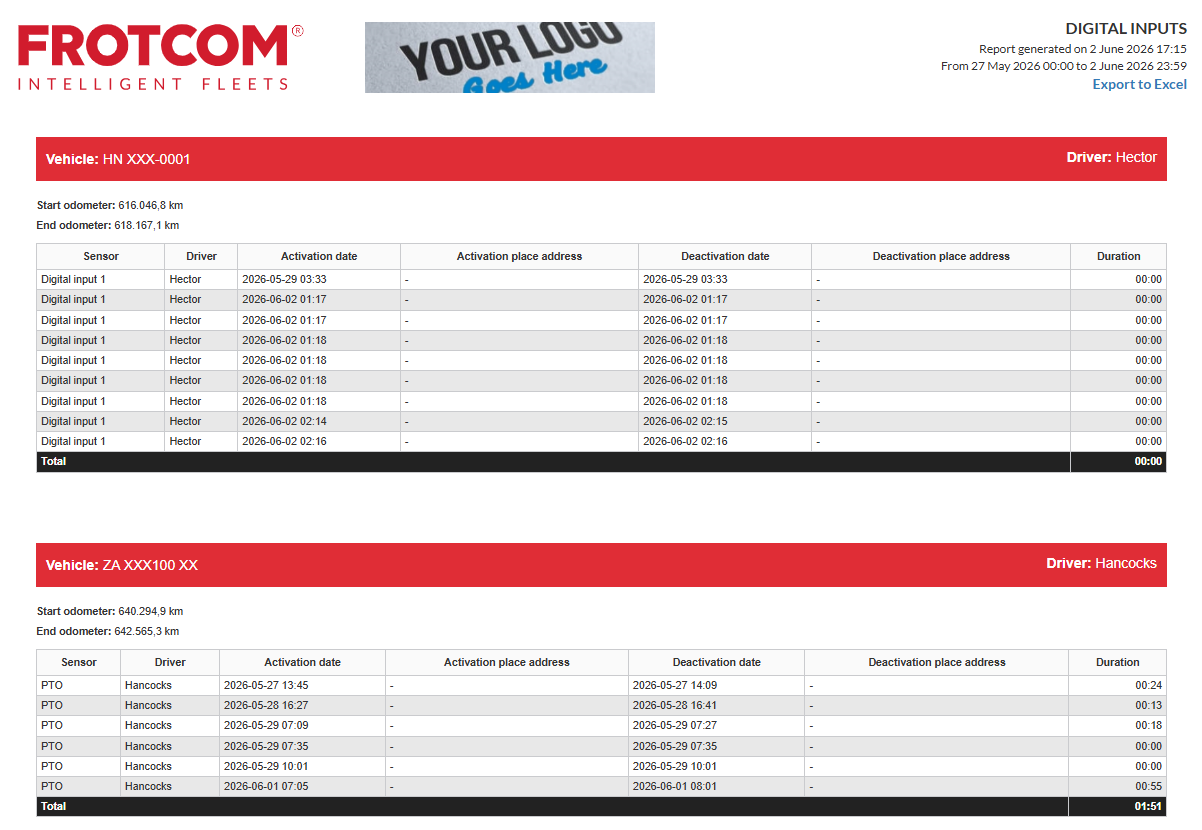

Output
The output of the report contains the following data/columns:
Header
| Column | Description |
| Vehicle | The License plate of the vehicle. |
| Driver | The Driver associated with the vehicle during the period, shows if only one driver in the period. |
| Start odometer | Odometer of the vehicle in the beginning of the period. |
| End odometer | Odometer of the vehicle in the end of the period. |
Table
| Column | Description |
| Sensor | The Digital input that was active in the period. |
| Driver | The Driver associated with the vehicle during the period. |
| Activation time | Time and Place (or Address, if there is no matching Place configured in Frotcom) where the sensor was activated. |
| Activation place | |
| Deactivation time | Time and Place (or Address, if there is no matching Place configured in Frotcom) where the sensor was deactivated. |
| Deactivation place | |
| Duration | Duration (Deactivation time - Activation time) of the period. |
