Webhook for Jobs – Help Center

This webhook will communicate status updates of the Jobs of the account: activities, interruptions, and forms.

You can read more information about webhooks here.

Authentication

Frotcom will send webhook requests with an authentication token in the request headers. Your application must validate this token before processing the request.

Request header

Header	Description	Format	Mandatory	Example
Authorization	Token generated during configuration	GUID	Yes	1234-5678-9097-8466
Content-Type	Specifies the format of the request payload	Text	Yes	application/json

Your system should reject any request that does not contain a valid Authorization token.

Webhook request format

HTTPS Method and Endpoint

Method: POST
Content-Type: application/json
Example Endpoint: https://yourdomain.com/webhooks/frotcom

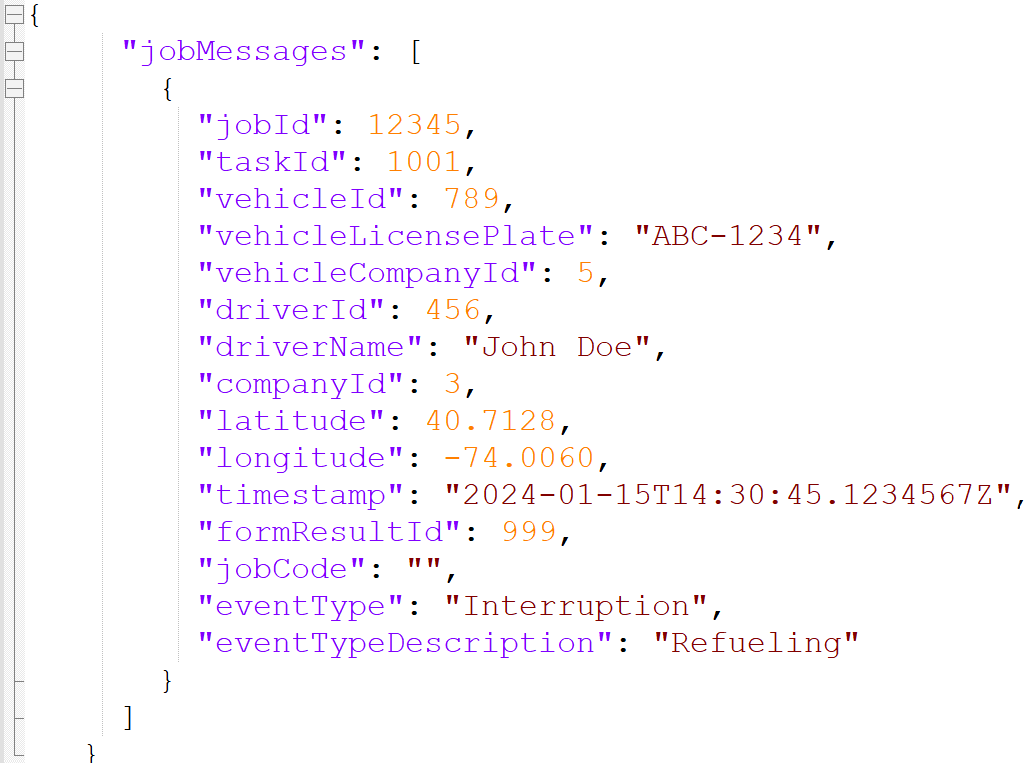

JSON Payload Structure

Frotcom will send a JSON object containing vehicle position data:

Field	Description	Format	Example
Token	Token generated on configuration in the header of the message	GUID	12345678909784646
Driver ID	Frotcom internal driver’s ID	Integer	123456
Driver Name	Driver’s name	Text	“John Doe”
Timestamp	Day and time in which the information refers.	The timezone used must be UTC.	"timestamp": "2023-10-25T16:29:31.087Z",
Latitude	Current vehicle’s location (latitude)	Text	38.72148501310173
Longitude	Current vehicle’s location (longitude)	Text	-9.234022701031712
Vehicle	Frotcom License plate	Text	AA-001-AAA
Job ID	Job identifier	Integer	1234567
Task ID	Task identifier	Integer	7654321
Form Results ID	Form result identifier (when available for Stages and Interruptions)	Integer	0000001
Event type	Type of event (includes Tasks and Interruptions updates)	Text	Start/Finish Stage Status Interruption Special Interruption Free Interruption Status
Event name	Description of the event	Text	“Start” “Moving to customer” “In Progress” “Refueling” “Beginning of the day” “On break” “Reject”

Response Requirements

Your endpoint must respond promptly with the appropriate HTTP status code:

Status code	When to use	Example Response Body
200 OK	Successful processing	{"status": "success"}
500 Server error	Processing error	{"error": "Internal server error"}
