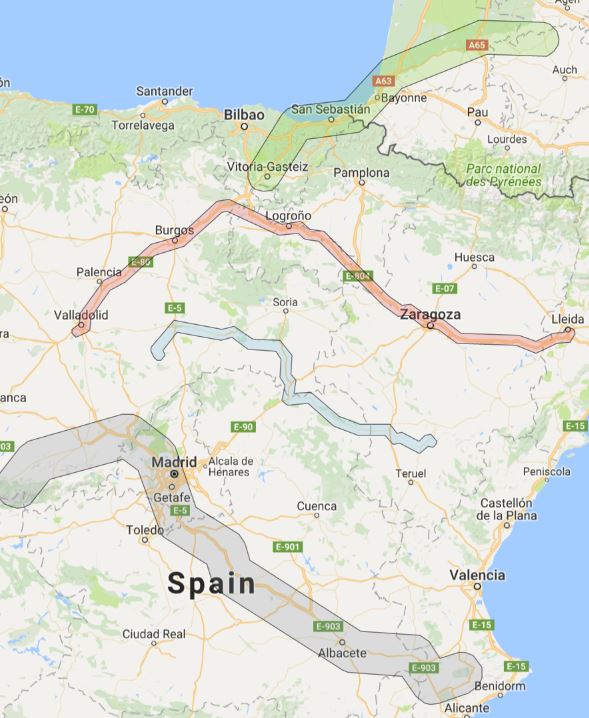

It is possible for you to visualize the corridors you created on the map. You will see that corridors might be displayed in different colors:
These colors are related to the state of the alarm(s) which is/are monitoring each corridor.
For nomenclature harmonization purposes, the following alarm state description is adopted:
| Corridor alarm states | Description |
| Not assigned | This means that no alarm was created for a particular corridor. |
| Pending | This means that, at least one alarm was created, for a particular corridor, but the conditions for the alarm to be monitored were not yet fulfilled. In other words, this means that the alarm is created but in a sleep mode, i.e. it will not be triggered. |
| Active | This means that the initial conditions are now met so the alarm started to be monitored. In other words, this means that the alarm is created and the associated vehicles are being monitored now. |
| Triggered | This means that the active alarms were triggered. In other words, an occurrence took place in which the events that trigger the alarm were detected, and the alarm was triggered. |
Depending on the view mode (last position mode or path mode), the relation between the colors of the corridors and the state of the corridors' alarms is:
| Color | Last position mode | Path mode |
| Grey | This is a corridor without assigned alarms. | This is a corridor without assigned alarms. |
| Blue | This is a corridor with pending alarms. | This is a corridor with pending alarms. |
| Green |
This is a corridor with active alarms that were not triggered for the last 24 hours. |
This is a corridor with active alarms that were not triggered in the selected period. |
| Red |
This is a corridor with active alarms that were triggered, at least once, in the last 24 hours |
This is a corridor with active alarms that were triggered, at least once, in the selected period. |
For you to define which corridors you want be displayed, go to Map settings by clicking the menu icon on the top right corner of the map:

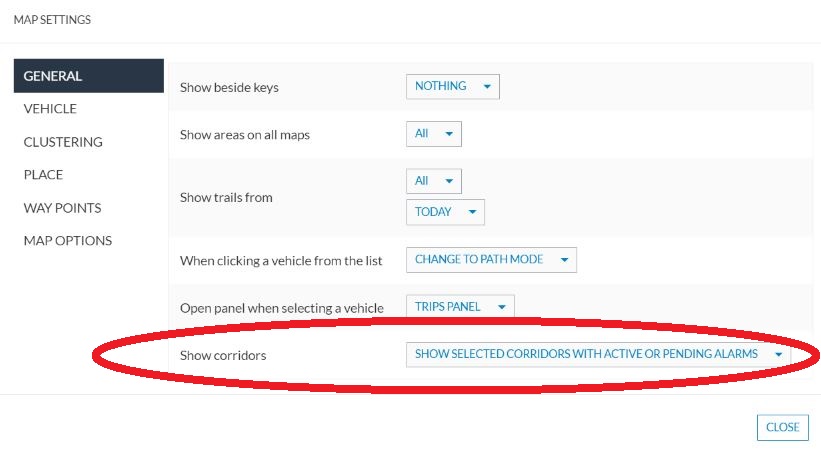

Then, select the Map settings option. A panel will pop up with the following fields:
On the General tab, you will see the Show corridors field:

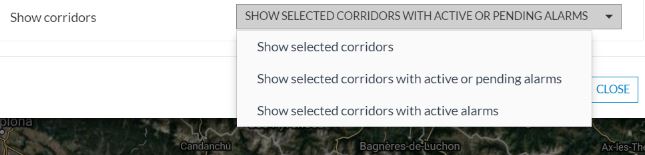

By clicking on the Show corridors drop down menu, you have the following options:
| Option | Description |
| Show selected corridors* | All the corridors will be displayed (grey, blue, green and red types) |
| Show selected corridors with active or pending alarms* | Only the corridors with alarms assigned will be displayed (blue, green and red types) |
| Show selected corridors with active alarms* | Only the corridors with active alarms will be displayed (green and red types) |
*The corridors will be displayed respecting the selection in the "Show areas on all maps" option, on the same panel.
If you want to know how to create a corridor, click here.
If you need further clarification, please contact your Frotcom Certified Partner. You can find the contacts of the Frotcom Certified Partners here.
