This article regards the Access control subsection of the Edit users option. To access the available options on the Access control subsection, you need to edit a user.

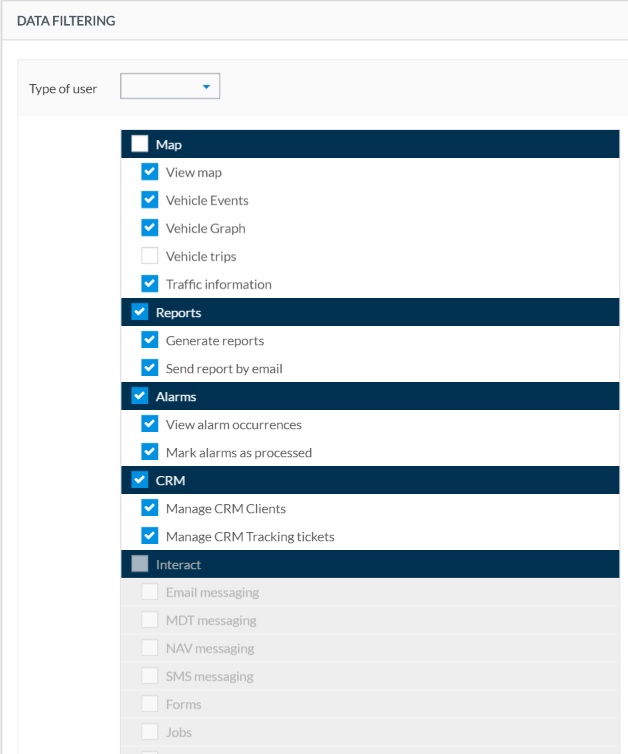

This is the Access control subsection panel for the edition of users:
The panel contains the following main fields:
| Fields | Description |
| Type of user | This is a quick fill-in mode. You can choose between Normal user and Administrator user. With this quick fill-in, you will not have to to tick or untick every single node of the access tree since it will be filled automatically according to typical permissions for both types of users, Normal users and Administrators. |
| Map |
These fields represent the Access Control tree and this is where you can specify in detail which areas of Frotcom you want a particular user to access. Have in mind that only areas/modules subscribed by your company will be selectable. The Old version subsection refers to the permissions applicable to the old version of Frotcom, also designated as Frotcom Silverlight. This subsection will be deprecated when the Silverlight version is definetely phased out. |
| Reports | |
| Alarms | |
| CRM | |
| Interact | |
| Management | |
| Routes | |
| Notebook | |
| General features | |
| User preferences | |
| Administration | |
| Old version |

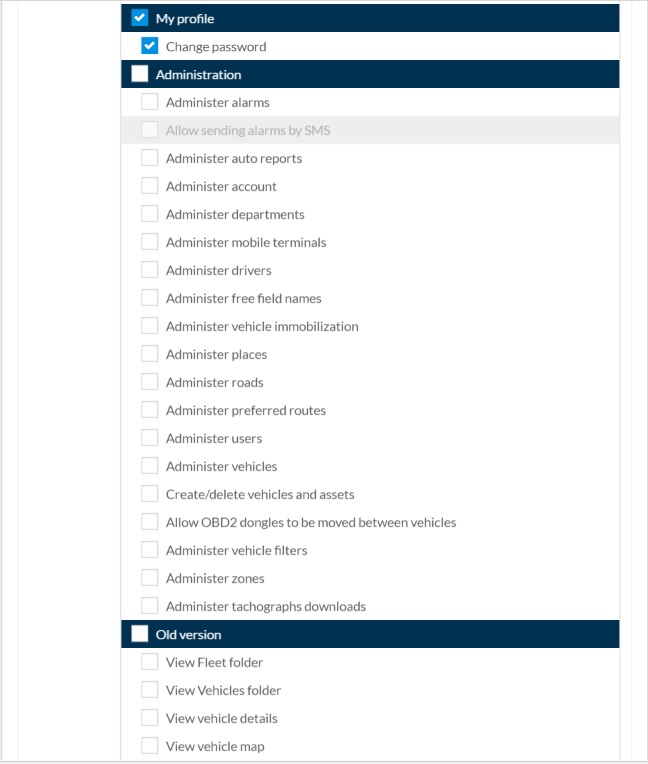

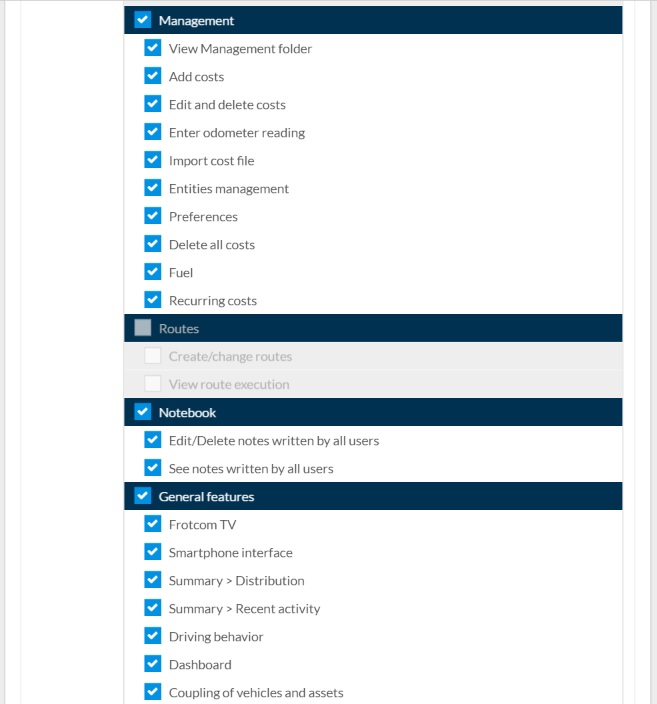

The Access control tree contains the following fields and sub-fields:
| Field | Sub-field |
| Map |
View map |
| Vehicle events | |
| Vehicle Graphs | |
| Vehicle trips | |
| Traffic information | |
| Reports | Generate reports |
| Send report by email | |
| Alarms | View alarm occurrences |
| Mark alarms as processed | |
| CRM | Manage CRM Clients |
| Manage CRM Tracking tickets | |
| Interact | Email messaging |
| MDT messaging | |
| NAV messaging | |
| SMS messaging | |
| Forms | |
| Jobs | |
| See messanges sent by all users | |
| Management | View management folder |
| Add costs | |
| Edit and delete costs | |
| Enter odometer readings | |
| Import cost file | |
| Entities management | |
| Preferences | |
| Delete all costs | |
| Fuel | |
| Recurring osts | |
| Routes | Create/change routes |
| View route execution | |
| Notebook | Edit/delete notes written by all users |
| See notes written by all users | |
| General features | Frotcom TV |
| Smartphone interface | |
| Summary > Distribution | |
| Summary > Recent activity | |
| Driving behavior | |
| Dashboard | |
| Coupling of vehicles and assets | |
| User preferences | Change password |
| Administration | Administer alarms |
| Allow sending alarms by SMS | |
| Administer auto reports | |
| Administer account | |
| Administer departments | |
| Administer mobile terminals | |
| Administer drivers | |
| Administer free field names | |
| Administer vehicle immobilization | |
| Administer places | |
| Administer roads | |
| Administer preferred routes | |
| Administer users | |
| Administer vehicles | |
| Create/delete vehicles and assets | |
| Allow OBD2 dongles to be moved between vehicles | |
| Administer vehicle filters | |
| Administer zones | |
| Administer tachograph downloads | |
| Old version | View fleet folder |
| View vehicles folder | |
| View vehicles details | |
| View vehicle map | |
| Find nearest vehicles | |
| Search directions | |
| Show ''Enter odometer reading'' button | |
| View management module reports | |
| View Fleet > Daily summary folder | |
| View CANBus data | |
| Use RFID | |
| Save my profile | |
| View CRM folder | |
| Save notebook folder |
Let's just look at an example, the Access control tree's Report field,
There are two sub-fields (Generate reports and Send report by email). The first is checked and the second is unchecked. So, the user will be able to Generate reports but not to send them via email.
If you wish to give this user Send report by email permission, just tick the desired sub-field.
Additionally, if you wish to remove an already granted permission to a particular user, just uncheck (remove mark) the desired sub-field.
Finally, if you wish to give all the permissions provided by a single field (e.g. reports) just tick the field and, automatically, all the linked sub-fields will be selected.
On the other side, the following options will always be available to all the users, independently of their permissions:
- Map page
- Search
- Vehicles
- Places
- Addresses
- Nearest vehicles
- Directions
- Fleet mode
- Vehicle/path mode
- Search
- CANBus data
- Save user own profile
By default, a maximum of 5 users can be created for each company. If you try to create a 6th, there will be a message saying the maximum number of users was reached. In special cases in which you may need to create more than 5 users per company, contact your Frotcom Certified Partner.
After you are done with all the desired modifications, make sure you click the Apply button, on the bottom of the panel so that Frotcom takes your changes into account:
If you need further assistance, please contact your Frotcom Certified Partner. You can find the contacts of the Frotcom Certified Partners here.
