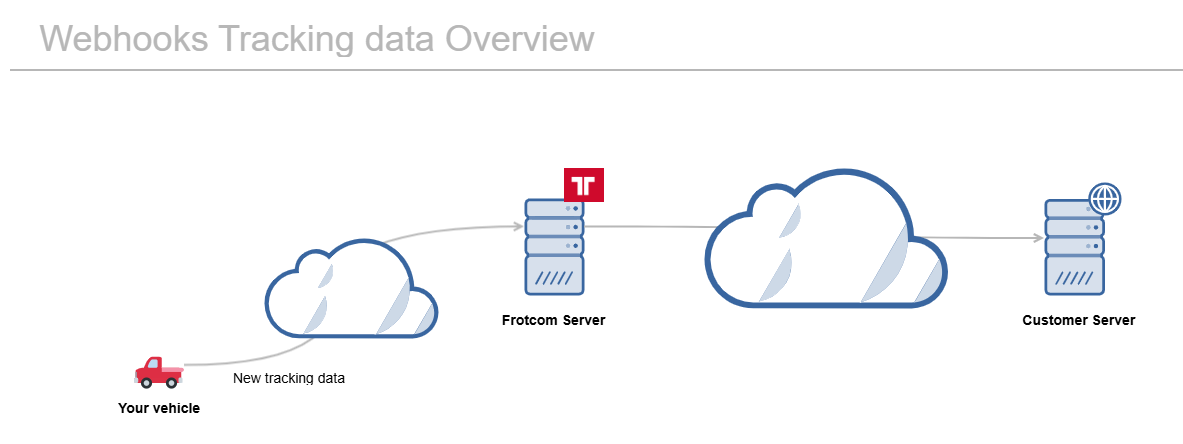

When Frotcom receives new tracking data* from your vehicles, a message is sent to your system.
* The lowest time interval is 1 minute; all events received in the 1 minute are grouped and sent in the next message.
You can read more information about webhooks here
Authentication
Frotcom will send webhook requests with an authentication token in the request headers. Your application must validate this token before processing the request.
Request Headers
| Header | Description | Format | Mandatory | Example |
| Authorization | Token generated during configuration. | GUID | Yes | 1234-5678-9097-8466 |
| Content-Type |
Specifies the format of the request payload. |
Text | Yes | application/json |
Your system should reject any request that does not contain a valid Authorization token.
Webhook Request Format
HTTPS Method and Endpoint
- Method: POST
- Content-Type: application/json
- Example Endpoint: https://yourdomain.com/webhooks/frotcom

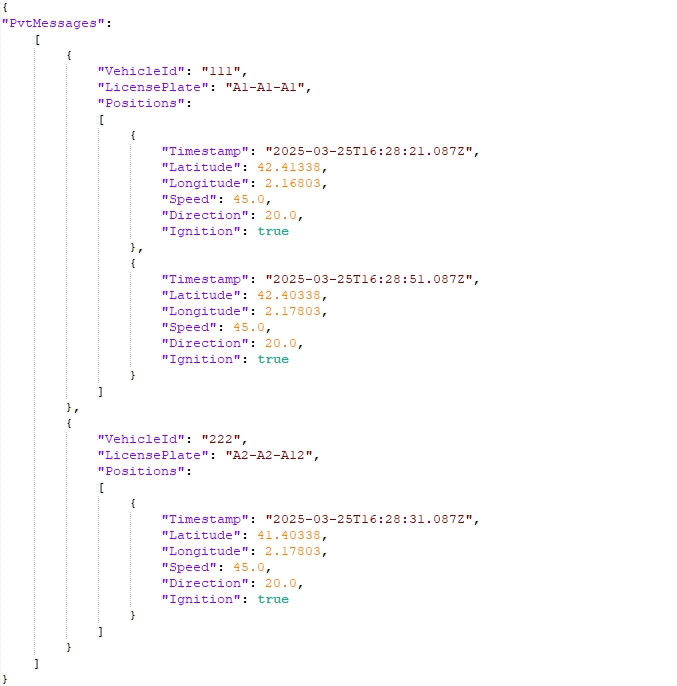

JSON Payload Structure
Frotcom will send a JSON object containing vehicle position data:
Data Fields
Root Object
| Field | Description | Format | Mandatory | Example |
| PvtMessages | Array of vehicle messages | Array | Yes | See below |
Vehicle Data
| Field | Description | Format | Mandatory | Example |
| VehicleID | Vehicle id | Text | Yes | 9876543 |
| LicensePlate | Frotcom License plate | Text | Yes | AA-001-AAA |
| Positions | Array of position records | Yes | See below |
Tracking Data
| Field | Description | Format | Mandatory | Example |
| Timestamp | Day and time in which the information refers. | The timezone used must be UTC. | Yes | "Timestamp": "2023-10-25T16:29:31.087Z", |
| Latitude | Latitude of the vehicle | Decimal degrees (DD) | Yes | "Latitude": 41.40338 |
| Longitude | Longitude of the vehicle | Decimal degrees (DD) | Yes | "Longitude": 2.17803 |
|
Speed |
The speed of the vehicle. | Double 1 decimal | Yes | "Speed":45.0 |
| Direction | Vehicle direction between 0 and 360º. | Double 1 decimal | No | "Direction": 20.0, |
| Ignition | The ignition of the vehicle (if the value received is true, it means ignition on; otherwise, it is off). | Boolean | Yes | "Ignition": true |
Response Requirements
Your endpoint must respond promptly with the appropriate HTTP status code:
| Status code | When to use | Example Response Body |
| 200 OK | Successful processing | {"status": "success"} |
| 500 Server error | Processing error | {"error": "Internal server error"} |
Important Implementation Notes
- Regular Operation: Frotcom delivers data batches once per minute.
- Data is delivered in batches to minimize connection overhead.
