Vehicle infobox - Customization

If you want to change the size of the infobox or change the fields that are displayed in each infobox mode (floating or docked), click the Settings button on any infobox header:

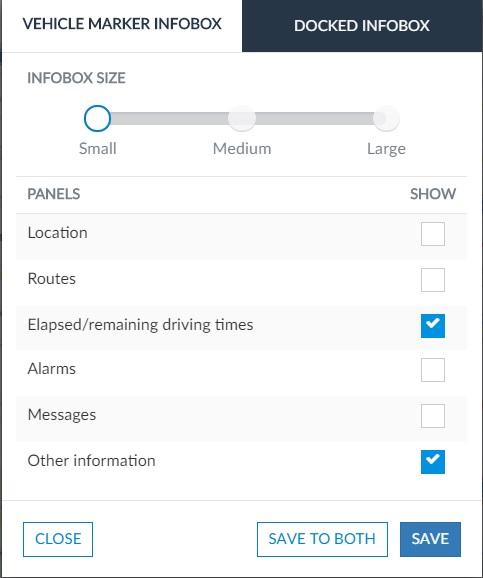

The infobox settings panel will be shown:

On the top you can select which infobox mode you want to edit:

Note that you can setup each infobox mode independently, according to your preferences. Both panels have the same editing options.

On the Infobox size sub-panel you have the following settings:

Size Description
Small The infobox is displayed at 1/3 of its maximum size. You will be supported by a scrolling bar, if necessary.
Medium The infobox is displayed at half of its maximum size. You will be supported by a scrolling bar, if necessary.
Large The infobox will consider the maximum vertical space available. You will be supported by a scrolling bar, if necessary.

By default, the floating mode infobox will have Small size selected. The docked mode infobox will have Large size selected.

On the Panels sub-panel, you can select which fields you want to be displayed in the infobox.

Please note that the following fields will be always visible: Marker fieldsTrip and GPS communication, and Drivers.

To add or remove additional fields, simple use the check box next to the corresponding row:

By default, the floating infobox panels are Marker fields, Trip and GPS communication, Drivers, Driving/Resting times and Other information. On the other hand, the docked infobox has all the available panels displayed, by default.

When you are finished with setting up your preferences, click Save. If you want the same settings to be considered for both infobox types, click Save to both.

After your confirmation, you will see the following pop-up:
